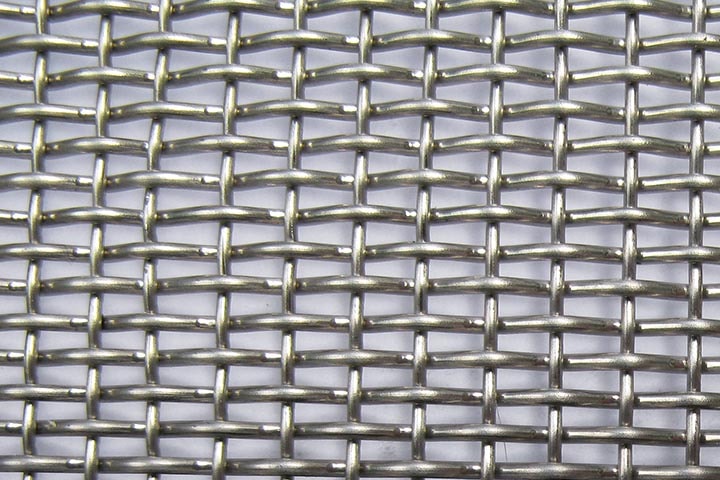

STAINLESS STEEL WELDED WIRE MESH

mosquito net manufacturers in kolkata

Stainless Steel Welded Wire Mesh enjoys excellent corrosion resistance,beautiful look, longer work time, when compared with galvanized welded iron wire mesh or PVC coated welded iron wire mesh, which can compensate for its seemingly higher cost.

MATERIALS:

Stainless steel SS304, 304L, 316, 316L.

BENEFITS OF STAINLESS STEEL:

  • Corrosion resistance
  • Fire and heat resistance
  • Hygiene
  • Aesthetic appearance
  • Strength-to-weight advantage
  • Ease of fabrication
  • Impact resistance
  • Long term value
  • Life Cycle of Stainless Steel

CHOOSE THE GRADE OF WIRE WHICH SUITS YOUR PURPOSE THE BEST

SS304 contains 18% chromium and 8% nickel while SS316 contains 16% chromium, 10% nickel and 2% molybdenum. The molybdenum is added to help resist corrosion to chlorides (like sea water and de-icing salts). Type 316 is durable, easy-to-fabricate, clean, weld and finish. It is considerably more resistant to solutions of sulphuric acid, chlorides, bromides, iodides and fatty acids at high temperature. Stainless steels containing molybdenum are required in the manufacture of certain pharmaceuticals in order to avoid excessive metallic contamination.

USING THE LOW-CARBON VERSION (304L/316L)

The low carbon reduces the chance of “weld sensitization” , or “weld decay.” This is a form of localized, severe corrosion that may take place in the heat effected zone

APPLICATIONS:

  • Transport
  • Entertainment Facilities:Civil Use: As security & isolation fencing for pedestrians’ pavement, transport center and other public places;
  • TransportFencing for goats, horse fencing and fencing for farms and livestock;
  • Earth Surface Stability:Fabricated into containers, suitable for support of earth surface stability;
  • Mine Exploitation:Industry & General Use: For machine protection, cage for equipment, support for cable and pipe, cover for fans and ventilation devices, etc.

Contact Us for high grade stainless steel wire and stainless steel wire mesh with micron or space openings. We also have a dedicated team for all your business requirements.

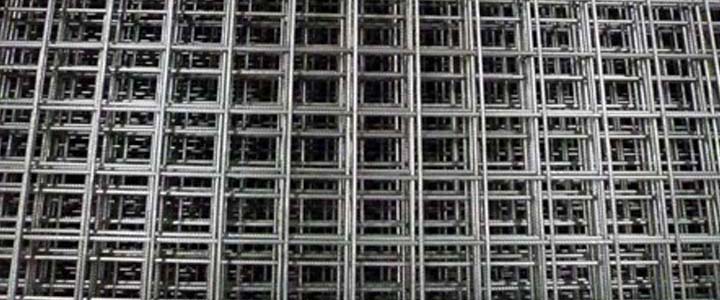

MS WELDED WIRE MESH

barbed wire manufacturers in kolkata

Welded Wire Mesh is manufactured conforming to IS:1566 (General Purpose) & IS:4948 (concrete reinforcement) We have our own wire drawing plant (for captive consumption) to draw wires from wire rods. These wires are cold drawn and conform to IS : 432 – Pt II / 1982 which specifies and ultimate tensile strength of 570 N/mm2 and a characteristic strength of 480 N/mm2. MS Welded mesh is manufactured from wire diameter ranging from 1.2mm to 8mm upto a maximum width of 2m. We have four welders in our plant to ensure timely supply to our customers. We also manufacture welded mesh from tor-steel (tor-kari) from wire diameter of 4mm-8mm (rebar)

WE SPECIALIZE IN MANUFACTURING WELD MESH FOR

  • Concrete Reinforcement (brickless buildings, tunneling, pipes,precast concrete structures)
  • Poultry
  • Fencing
  • Withering Troughs (Tea Gardens)
  • Air filters
  • Insulation
  • Horticulture
  • Mining
  • Storage
  • General Purpose (tree guards, guards, shelters,etc)
